A thermally and chemically sustainable nanocomposite, namely graphene oxide@polyaniline-FeF3 (GO@PANI-FeF3), was fabricated, and characterized using FT-IR (Fourier transform infrared spectroscopy), XRD (X-ray diffraction), FE-SEM (field emission scanning electron microscopy), EDAX (energy-dispersive X-ray spectroscopy) and TG (thermal gravimetric) analyses. Then, 4H-pyrimido[2,1-b]benzothiazoles were constructed from aryl aldehydes, ethyl acetoacetate and 2-aminobenzothiazole using GO@PANI-FeF3 as catalyst; performing the reactions under solvent-free conditions, efficiency, high yields, relatively short times and recoverability of the catalyst are some advantages of our protocol.

Graphical Abstract

Graphene Oxide@Polyaniline-FeF3 (GO@PANI-FeF3) as a Novel and Effectual Catalyst for the Construction of 4H-Pyrimido[2,1-b]benzothiazoles

Keywords

Main Subjects

Introduction

Because of our closed ecosystem, sustainable catalysts are of great importance for future of chemistry. During chemical transformations, diverse wastes are produced and accumulated in the environment. To avoid the risks, sustainable catalysts and reagents help us to preserve the environment. Reusing catalysts and wastes in the consecutive cycles is an important approach to solve environmental crises and economical aspects [1]. Nanostructured materials are superior in comparison with bulk ones [2-12]. For example, nanocatalysts are applied in fewer amounts, and mostly are reusable; thus, they are good candidates for sustainable processes, and are helpful to perform chemical reactions in safe medium [5-12]. Graphene and graphene oxide based nanomaterials are an attractive and valuable category of nanocatalysts, which have been utilized to carry out a variety of organic transformations [8-12]. Production of materials for daily life should be done without harming the environment. For this purpose, chemical processes should be designed in accordance with green chemistry principals [13]. A useful way to diminish the environmental problems is utilization of one-pot multi-component reactions (MCRs) in organic synthesis. In MCRs, formation of by-products and wastes, energy consumption and the use of toxic organic solvents are minimized, time and economy is saved, and product yield is increased [14-18]. The substances bearing benzothiazole scaffold are a significant class of heterocycles, because they have numerous biological and medicinal activities, e.g., antitumor [19], antimicrobial [20], antioxidant [21], antidiabetic [22], anti-infective [23], anticonvulsant [24], antibacterial [25], and anti-tubercular [26] properties. The one-pot multi-component reaction of aryl aldehydes, ethyl acetoacetate and 2-aminobenzothiazole is a useful method to construct 4H-pyrimido[2,1-b]benzothiazoles; some catalysts have been utilized to perform this reaction, e.g., trypsin [27], acetic acid-activated charcoal [28], Fe3O4@nano-cellulose/TiCl [29], carbon/TiO2-SO3H-SbCl2 [30], nano-cellulose/BF3/Fe3O4 [31], Fe3O4@nano-dextrin-OPO3H2 [32], nano-kaolin/Ti4+/Fe3O4 [33], 1,1,3,3-tetramethylguanidinium trifluoroacetate [34], and [NicTC]HSO4@Fe3O4 [35]. Many of the reported methods for the construction of 4H-pyrimido[2,1-b]benzothiazoles have one or more of these drawbacks: moderate yields, long reaction times, difficult purification, high temperature, and no reusability of catalyst.

Concerning the above issues, introducing a novel graphene oxide-based nanocomposite to catalyze the multi-component reaction of aryl aldehydes, ethyl acetoacetate and 2-aminobenzothiazole in solvent-free conditions leading to 4H-pyrimido[2,1-b]benzothiazoles is valuable and desirable. Here, we have exactly done this, and introduced graphene oxide@polyaniline-FeF3 (GO@PANI-FeF3) nanocomposite as an effectual catalyst for the construction of 4H-pyrimido[2,1-b]benzothiazoles.

Experimental

Materials

Chemicals and solvents (in high purity) were purchased from Sigma-Aldrich chemical company, and utilized without further purification. The modified Hummers method was utilized to construct graphene oxide (GO) [36]. For recording NMR spectra, Brucker Avance device was employed. JASCO FT-IR spectrometer was utilized to record FT-IR spectra using KBr pellets. A Shimadzu apparatus (XRD 6000) was exploited for recording XRD patterns. FE-SEM and EDAX were recorded using a TESCAN electron microscope. TGA was studied using a Perkin Elmer (Elan DRC 6000) device.

Fabrication of GO@PANI

GO (0.20 g) was added to HCl solution (1M, 70 mL), and the mixture was sonicated for 60 min at room temperature. The attained suspension was cooled in an ice bath for 30 min, aniline (40 mmol, 3.66 mL) was added, and vigorously stirred. Separately, a solution of (NH4)2S2O8 (40 mmol, 9.1 g) in HCl (1 M, 30 mL) was prepared, and cooled in an ice bath for 30 min, and then it was added to the GO-aniline mixture, and the resulting mixture was stirred in ice bath for 10 h. Finally, the formed precipitate was filtered, washed with deionized water, and dried in a vacuum oven at 60 ºC to afford GO@PANI. Polymerization of aniline was performed according to the literature [37].

Fabrication of GO@PANI-FeF3

A solution of GO@PANI (0.50 g) in acetonitrile (25 mL) was sonicated at room temperature for 1 h, and then FeF3 (1 mmol, 0.113 g) was added to it, and the obtained mixture was stirred at 60 ºC for 24 h. Lastly, the precipitate was filtered, washed with acetic acid, acetonitrile and acetone, and dried in an oven at 100 ºC to obtain GO@PANI-FeF3.

The construction of 4H-pyrimido[2,1-b]benzothiazoles

A mixture of aldehyde (1 mmol), ethyl acetoacetate (1 mmol, 0.13 g), 2-aminobenzothiazole (1 mmol, 0.15 g) and GO@PANI-FeF3 (0.02 g) was homogenized by a glass rod, and stirred at 90 ºC. After the completion of the reaction (as monitored by TLC using silica gel SIL G/UV 254), hot EtOAc was added, stirred, and filtered hot to isolate insoluble GO@PANI-FeF3 (which was washed by hot EtOAc and dried). The filtrate was distilled, and the retained solid was recrystallized from EtOH to give pure 4H-pyrimido[2,1-b]benzothiazole.

NMR data of 4H-Pyrimido[2,1-b]benzothiazole 4d

1H-NMR (400 MHz, DMSO-d6): δ (ppm) 1.21 (t, J = 7.1 Hz, 3H, CH3CH2), 2.51 (s, 3H, CH3), 4.07 (m, 2H, CH2CH3), 6.66 (s, 1H, methine CH), 7.21 (t, J = 7.6 Hz, 1H, Ar), 7.31 (t, J = 7.7 Hz, 1H, Ar), 7.47 (d, J = 8.1 Hz, 1H, Ar), 7.73-7.78 (m, 3H, Ar), and 8.16 (d, J = 8.2 Hz, 2H, Ar); 13C-NMR (100 MHz, DMSO-d6): δ (ppm) 14.6, 23.9, 56.4, 60.2, 102.3, 112.8, 123.3, 123.5, 124.4, 124.8, 127.4, 128.9, 137.7, 147.7, 148.7, 155.5, 163.5, and 165.7.

Results and Discussion

Characterization of GO@PANI-FeF3

Graphene oxide@polyaniline-FeF3 (GO@PANI-FeF3) was fabricated according to Scheme 1; FT-IR, EDAX, FE-SEM, XRD, and TG analyses were applied for its characterization. In the FT-IR spectrum of GO (Figure 1), the peak related to hydroxyl groups was observed at 3410 cm-1. Carbonyl groups gave a peak at 1739 cm-1 [38]. The band appeared at 1628 cm-1 is related to C=C bonds [39]. The peak corresponded to epoxide C–O was observed at 1053 cm-1 [40]. In the FT-IR spectrum of GO@PANI (Figure 2), the band at 3391 cm−1 is ascribed to NH of polyaniline, and the broad peak appeared at ~3100-3650 cm-1 is related to hydroxyl groups of GO [41]. The bands observed at ~3031 and ~2918 cm-1 are belong to aromatic and aliphatic C–H bonds, respectively [42]. C=C groups gave bands at 1593 and 1497 cm-1. The peak appeared at 1296 cm-1 can be attributed to C–N bonds of polyaniline [43]. The peak belong to C–O was observed at 1107 cm−1 [44]. In the FT-IR spectrum of GO@PANI-FeF3 (Figure 3), the bands related to NH and hydroxyl groups were detected at 3445 and 3252 cm-1, respectively [41].

The peak at 1674 cm−1 is ascribed to C=O groups. C=C bonds gave peaks at 1582 and 1493 cm-1. The peak belong to C–N was seen at 1300 cm-1 [43]. The peak related to Fe–F bonds of FeF3 was observed at 501 cm-1 [45].

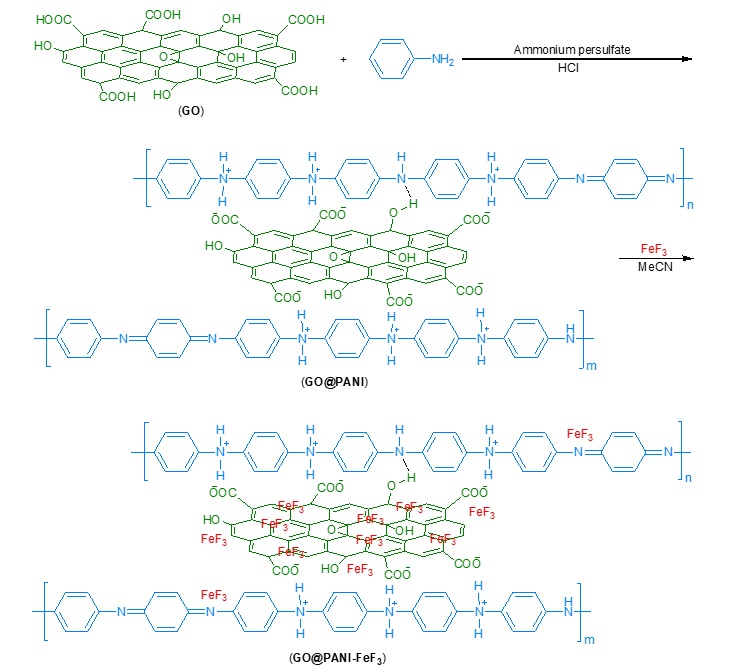

Scheme 1. Fabrication of GO@PANI-FeF3.

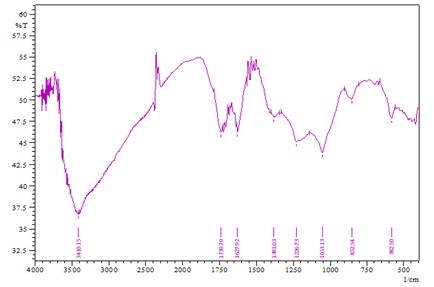

Figure 1. The FT-IR spectrum of GO.



Figure 2. The FT-IR spectrum of GO@PANI.

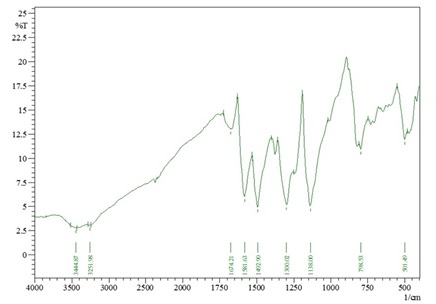

Figure 3. The FT-IR spectrum of GO@PANI-FeF3.

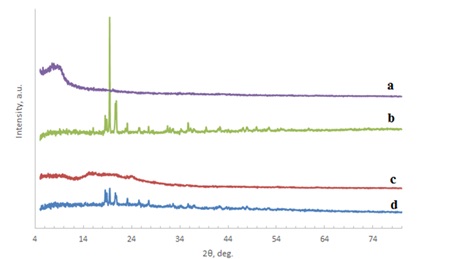

Figure 4. The XRD patterns of GO (a), FeF3 (b), GO@PANI (c), and GO@PANI-FeF3 (d).

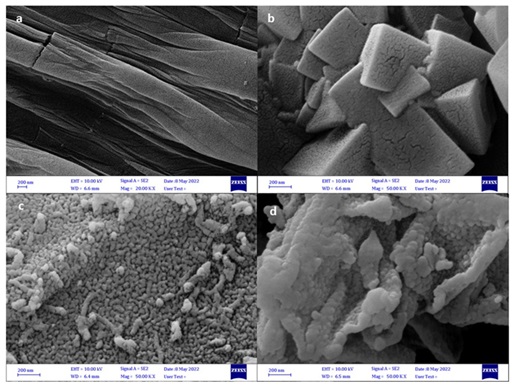

Figure 5. The FE-SEM images of GO (a), FeF3 (b), GO@PANI (c), and GO@PANI-FeF3 (d).

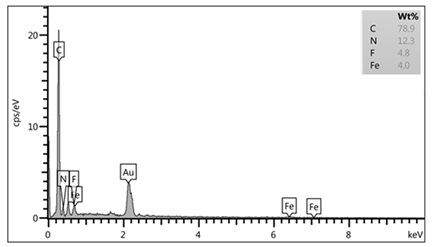

Figure 6. The EDAX analysis of GO@PANI-FeF3.

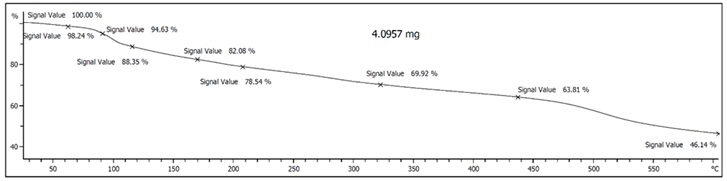

Figure 7. The TG diagram of GO@PANI-FeF3.



The XRD patterns of GO, FeF3, GO@PANI, and GO@PANI-FeF3 are illustrated in Figure 4. The XRD pattern of GO (Figure 4a) showed a broad peak at 2θ ≈ 5.9-12.9º (this is the characteristic peak of GO) [46]. In the XRD pattern of FeF3 (Figure 4b), some sharp peaks were observed between 8 to 63º [47]. The XRD pattern of GO@PANI (Figure 4c) showed some broad peaks between 5 to 34º, which are ascribed to the structure of GO and polyaniline. By comparing the XRD patterns of GO, FeF3, and GO@PANI with the pattern of GO@PANI-FeF3 (Figure 4d), existing GO, polyaniline, and FeF3 in the structure of final nanocomposite was verified. The FE-SEM images of GO, FeF3, GO@PANI, and GO@PANI-FeF3 are represented in Figure 5. As Figures 5a indicates, graphene oxide is formed from sheets with different diameters. According to Figure 5b, the crystals of FeF3 are as rectangular cuboid with diverse sizes. The FE-SEM image of GO@PANI (Figure 5c) showed covering GO sheets by polyaniline. In the FE-SEM image of GO@PANI-FeF3 (Figure 5d), covering GO sheets by polyaniline and FeF3, and formation of thick sheets were observed. The EDAX spectrum of GO@PANI-FeF3 is exhibited in Figure 6. Surface elemental analysis of the nanocomposite was conducted for C, N, F, and Fe. In the spectrum, the peaks related to the elements and their percentages are shown. The EDAX results confirmed presence of graphene oxide, polyaniline, and FeF3 in the catalyst structure. TG analysis of GO@PANI-FeF3 was conducted under argon atmosphere; the obtained diagram is illustrated in Figure 7.

Addressing the TG diagram, three main weight losses can be observed. The first weight loss (up to ~105 ºC) can be related to evaporation of adsorbed water and volatile solvents on the nanocomposite surface. The second and third weight losses (at 105-450 ºC and 450-600 ºC) can be attributed to the desorption of high molecular weight species, FeF3 and functional groups, and the destruction of polyaniline and GO structure [48].

The construction of 4H-pyrimido[2,1-b]benzothiazoles using GO@PANI-FeF3

In order to examine catalytic performance of GO@PANI-FeF3 in organic reactions, the construction of 4H-pyrimido[2,1-b]benzothiazoles from aryl aldehydes, ethyl acetoacetate and 2-aminobenzothiazole was chosen. Optimization of the reaction conditions was conducted on the construction of 4H-pyrimido[2,1-b]benzothiazole 4c (Scheme 2); for this purpose, the influence of three variables, including solvent, temperature and amount of GO@PANI-FeF3, on the reaction was investigated. On basis of the attained data (Table 1), the optimum catalyst amount and temperature were 0.02 g and 90 ºC, respectively. Moreover, solvent-free conditions were more effectual (entry 10). The reaction was also tested in the absence of catalyst at 110 ºC in which compound 4c was obtained in 19% after 250 min (entry 6).

Furthermore, the reaction was examined using GO, GO@PANI and FeF3 as catalysts; GO and GO@PANI gave the product in 46 and 51%, respectively (entries 13 and 14). FeF3 afforded 4H-pyrimido[2,1-b]benzothiazole 4c in 89% (entry 15); this result was obtained using 0.02 g of FeF3, but the amount of FeF3 in 0.02 g of GO@PANI-FeF3 (optimal conditions) is far fewer than the amount of FeF3 used in entry 15.Thus, our idea to design graphene oxide@polyaniline-FeF3 was logical. The scope and limitations of our protocol for the construction of 4H-pyrimido[2,1-b]benzothiazoles were investigated thru usage of diverse aryl aldehydes in the reaction; the results are listed in Table 2.

As presented in Table 2, all products were fabricated in high yields and relatively short times; this subject confirmed wide scope of our protocol. Nevertheless, aldehydes bearing electron-withdrawing and halogen substituents gave higher yields in comparison with aldehydes having electron-releasing substituents.



Table 1. Optimization of conditions for the construction of 4H-pyrimido[2,1-b]benzothiazole 4c

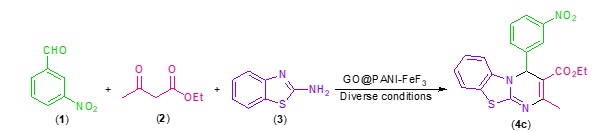

Scheme 2. The construction of 4H-pyrimido[2,1-b]benzothiazole 4c.

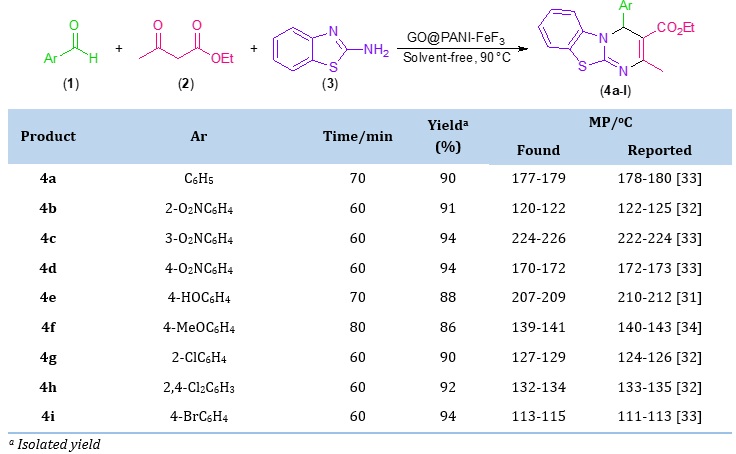

Table 2. The fabrication of 4H-pyrimido[2,1-b]benzothiazoles using GO@PANI-FeF3



To examine the recoverability of GO@PANI-FeF3, the fabrication of 4H-pyrimido[2,1-b]benzothiazole 4c was selected; Figure 8 illustrates the reusability results. The nanocomposite was reusable for two times with negligible decrement of the yield (runs 2 and 3). However, in third reusing, the yield slightly decreased (run 4). In fourth reusing (run 5), the yield greatly decreased. The reactions time was 60 min.

Scheme 3 depicts the reaction mechanism, which was proposed on basis of the literature [29,31]. GO@PANI-FeF3 acts as a dual-functional catalyst; FeF3 is a Lewis acid, and carboxylate anion is a weak base. FeF3 and carboxylate activate the electrophiles and the nucleophiles, respectively, and facilitate steps 1, 3, and 4. Both species can accelerate tautomerization of ethyl acetoacetate in step 1, and also help removal of H2O in steps 2 and 5.

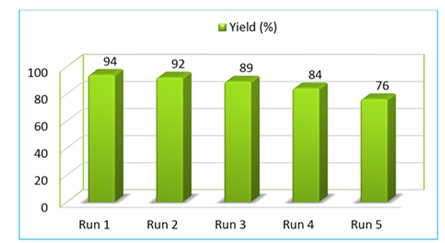

Figure 8. The reusability results of GO@PANI-FeF3

Scheme 3. The mechanism



Conclusion

To sum up, we have reported fabrication and characterization of a novel nanocomposite, namely graphene oxide@polyaniline-FeF3. Afterwards, we have utilized the nanocomposite as catalyst for the construction of 4H-pyrimido[2,1-b]benzothiazoles. Thermal and chemical sustainability of the catalyst, efficiency, relatively short times, high yields of the products, performing the reaction in solvent-free conditions, reusability of the catalyst, easy work-up, and effortless purification of the products are the advantages of our protocol.
